powerful hub motor, torque performance, stability, and compatibility with wide rims
The Ananda eFat M150 bike features a powerful 350W (up to 750W) hub motor, providing riders with ample power for various terrains and riding conditions. Whether climbing steep inclines or cruising through challenging trails, the motor ensures a dynamic and exhilarating riding experience.
Weighing just 4kg, the eFat M150 bike boasts a specific design for eFat Bikes without compromising on performance. The impressive 40Nm (350W) of torque offers seamless acceleration, allowing riders to conquer hills and rough terrain with ease

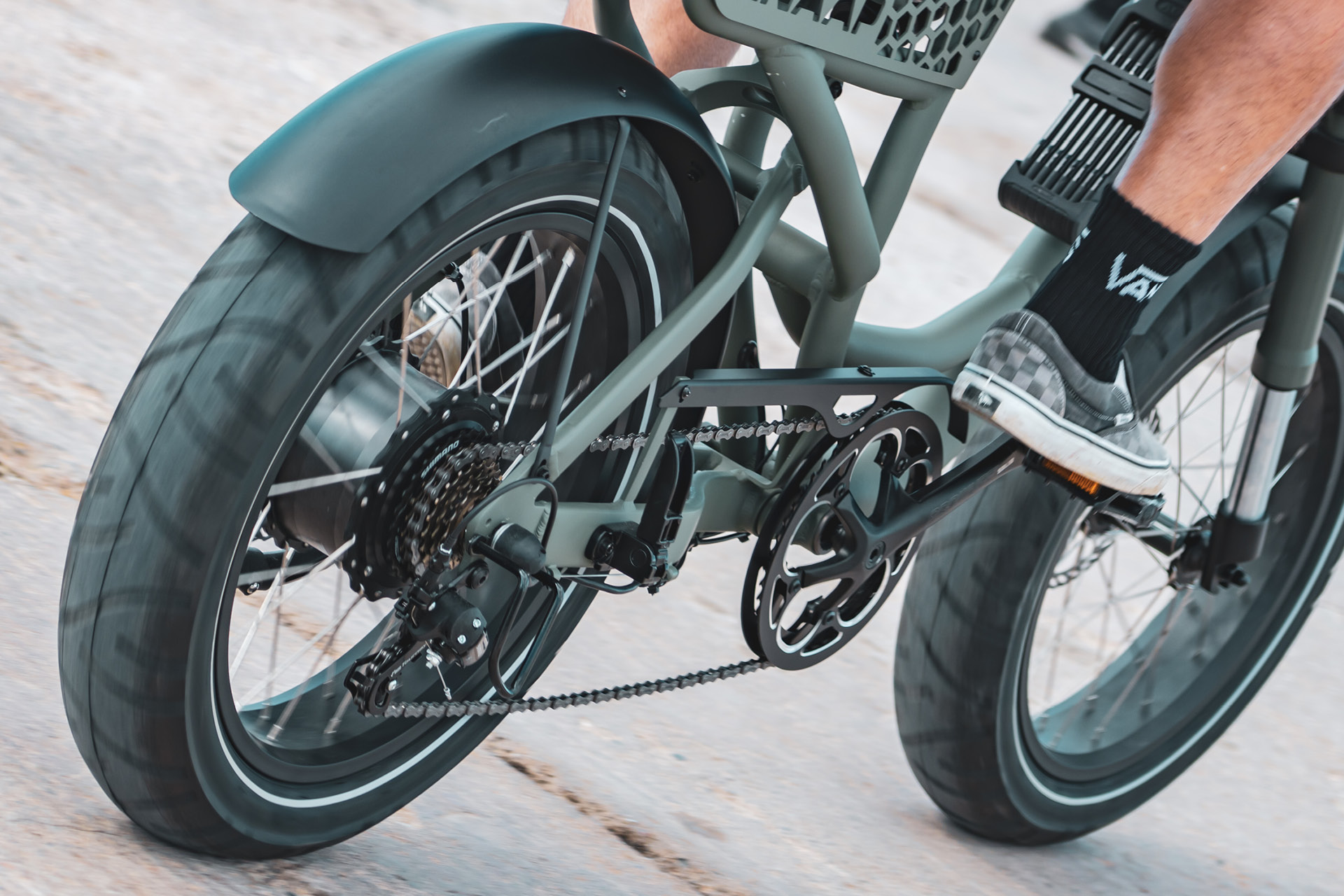

Equipped with an OLD (Over Locknut Dimension) of 175mm, the eFat M150 bike ensures a stable and secure fit for wide rims. This feature enhances traction on any terrain, providing riders with confidence and control during riding adventures
| 电机结构 | Gear Drive |
| 重量 (Kg) | 4.0 / 4.5 |
| 颜色 | Black |
| 噪音等级 (dB) | ≤60 |
| 工作温度 (°C) | -20~55 |
| 刹车类型 | Disc Brake / V Brake |
| 出线方式 | Shaft side, Left/Right |
| 辐条规格 | 36H*12G |
| 飞轮 | 旋式飞轮 1速/旋式飞轮 7速 |
| 额定电压 (DC) | 36V / 48V |
| 额定功率 (W) | 350/500/750 |
| 最大扭矩 (N.m) | 55/55/85 |
| 最大效率 | ≥80% |
| 认证证书 | CE / RoHS / REACH / UL |
| 防护等级 | IPX5 |
| A (mm) | 72.8 |
| B (mm) | 158.8 |
| C (mm) | 145 |
| D (mm) | M14x1.5 |
| E (mm) | 15.9 |
| F (mm) | 40.7 |
| 开档尺寸 | 175 |
| 出线长度 (mm) | 250 |
| 开档尺寸 |
| 电机结构 |
| 额定电压 (DC) |
| 额定功率 (W) |
| 最大扭矩 (N.m) |
| 最大效率 |
| 重量 (Kg) |
| 颜色 |
| 噪音等级 (dB) |
| 工作温度 (°C) |
| 刹车类型 |
| 出线方式 |
| 出线长度 (mm) |
| 辐条规格 |
| 飞轮 |
| 认证证书 |
| 防护等级 |
M150SD
宽胎电助力自行车
| 175 |
| Gear Drive |
| 36V / 48V |
| 350/500/750 |
| 55/55/85 |
| ≥80% |
| 4.0 / 4.5 |
| Black |
| ≤60 |
| -20~55 |
| Disc Brake / V Brake |
| Shaft side, Left/Right |
| 250 |
| 36H*12G |
| 旋式飞轮 1速/旋式飞轮 7速 |
| CE / RoHS / REACH / UL |
| IPX5 |
M132SD
宽胎电助力自行车
| 175 |
| 减速电机 |
| 36V / 48V |
| 250 / 350 |
| 42/ 50 |
| ≥80% |
| 2.7 / 2.8 |
| 黑色 |
| ≤55 |
| -20~55 |
| 碟刹 / V刹 |
| 轴侧，左侧 |
| 250 |
| 36H*13G |
| 旋式飞轮 7速 |
| CE / RoHS / REACH |
| IPX5 |
